MPP pipe productio linea

MPP pipe productio linea techinical parametri:

Unitas nomine (MPP / PE) pipe productio unit

Model: on-L

Polyethylene pipe Unit Specifications et Technical Specifications:

Product Specifications: externa Diameter φ110-160-200

Interior Diameter Specification: φ100-150-175-200sn24, SN32-SN40 providit a Customer

I) Resin Used: PpK8003 Pick8003 Pe80.pE100

II) Extrusionem volumine:

III) Extruder Model Extrusion Extrusion Capacity dicta

IV) GSJ75 × XXXVIII Pe80, Pe100 450-600KG / H Efficens Host

V) SJ55 × XXXIII pe80, Pe100 80kg / H interius et exteriores coating

VI) * Et Extrusionem moles potest variari fretus processus materiae et operating conditionibus.

VII) productio linea celeritas: 0.3-5.5m / min

VIII) Centrum altitudinis ex extruder: 1000mm

MPP pipe productio linea compositionem lists:

φ90 (1.6MPA) specificationem output non minus quam 420kg / h;

Φ110 (1.6MPA) specificationem output non minus quam 460kg / h.

Φ160 (1.0MPA) specificationem output est minus quam 550kg / h. Pp materia output est minus quam X%

Ut a Quotation autem

MPP Pipe productio linea Product Details photos

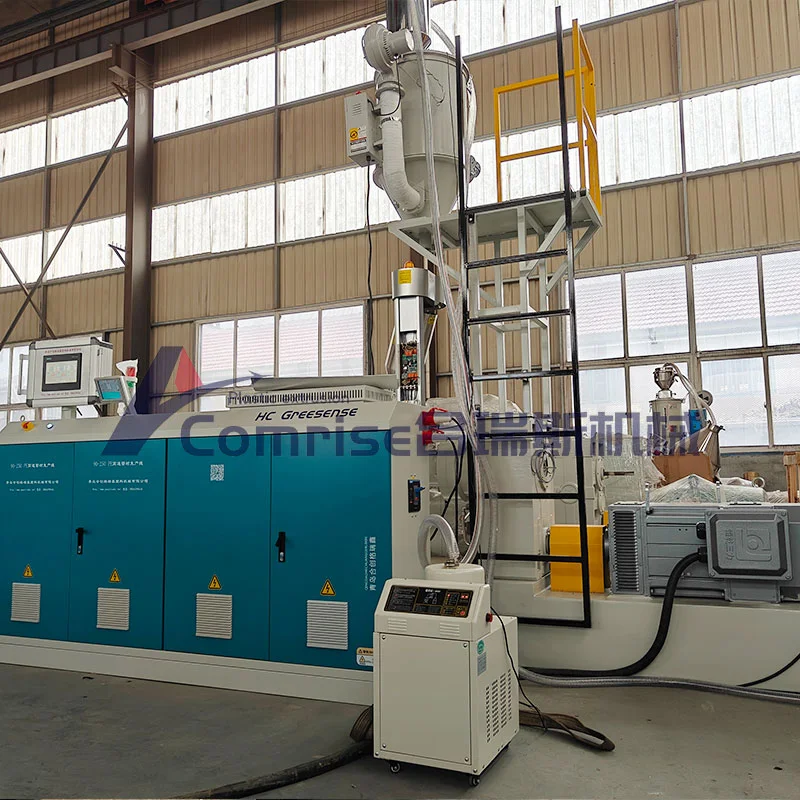

75-250mm MPP potentia electrica pipe productio linea --- sj75 / XXXVIII princeps efficientiam una stupra extruder.

Ob optimized cochlea et nova sleve consilium, et extruder habet sequenti commoda: princeps plasticization rate, uniformis conflandum et continua et firmum productio. High-euismod Gearbox Reducer magna torque, diu et low strepitu. Et driving motricium est AC motricium.

1) Model TS75 × XXXVIII

2) Screw (Zhoushan Huafu)

75mm Diameter

aspp Ratio XXXVIII, I

Mateial 38cmoala

motor

mode ac motricium

160kw power

Motor Controller ac Frequency Conversion (Schneider)

PLC programmable computatrum imperium ratio

The control adopts human-machine interface computer control, large-screen color LCD screen 10.4” 640×480 resolution, operating parameters can be freely defined and displayed on all monitor screens, such as speed, temperature optimization settings, which can be stored once created , and also has the following important alarm and stop functions (1) After the main motor rotates, the maximum torque is allowed to be 105% for 3 minutes, the alarm is displayed, and Tunc prohibet. Totius ratio adoptat distribui network structuram, quae non solum habet celeritate synchronization imperium munus, sed etiam habet intelligentes procuratio munus.

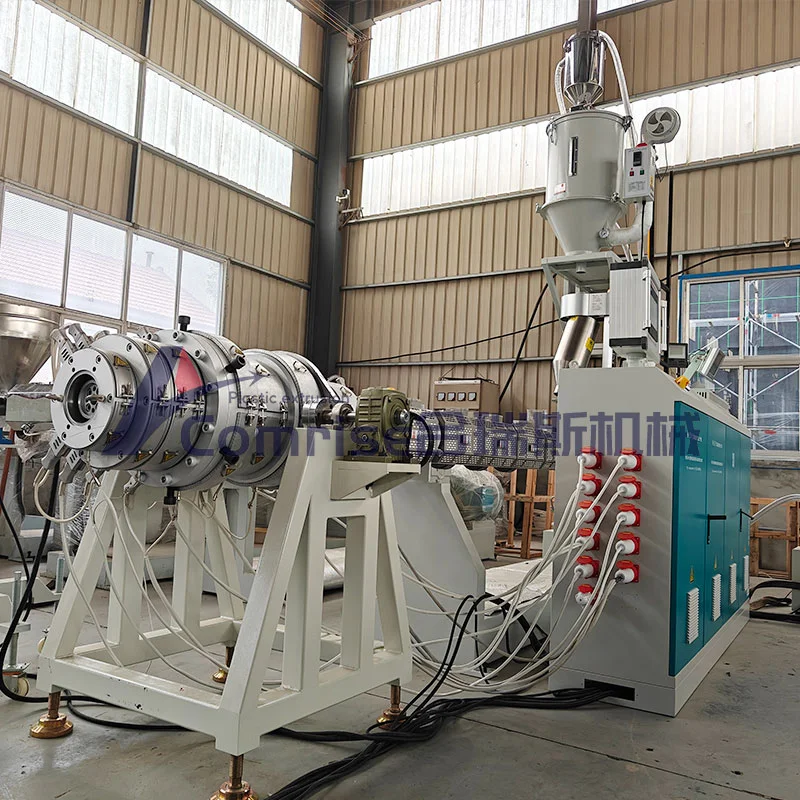

MPP pipe productio linea --- SJ55 / XXXIII coactus Extrusionem Machina

Compositum Apparatus caput cum replaceable core fingunt (oleum temperatus ad fingunt core regitur, interiore muro pipe est superbundi in vacuo Succure et concurrunt Refrigering Methodo)

Φ75 ~ φ250 unum de fingere corporis, cum reversible fingunt trolley;

Modum spirae replaceable mori, Mandrel

XVI calefactio imperium zonas, Ceramic vel Micha calefacit annulos

Power Max 80kw

Replaceable sizing sleeve, replaceable mori, replaceable Mandrel, pressura gradu potest electus secundum mos necessitatibus

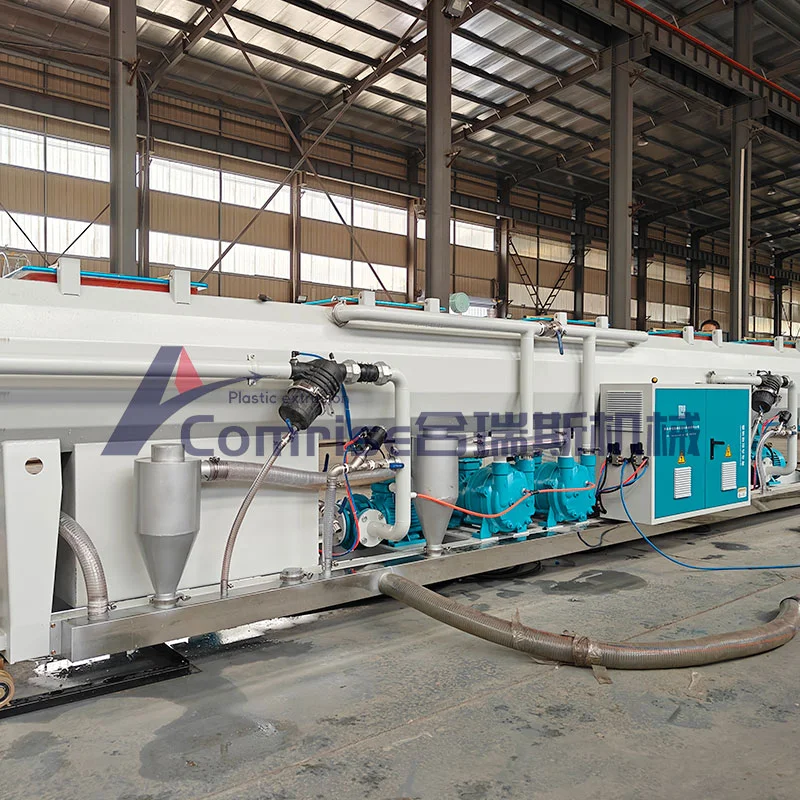

MPP pipe productio linea --- vacuum sizing arca (IX metris)

Pelagus munus in vacuo sizing mensa est ad sizing et frigus fistulae. A filter ratio et bypass circulationem semita sunt installed in aqua circulatione semita. Etiam habet automatic vigilantia aquae campester et aqua temperatus. In sizing laminam est installed in vacuum sizing mensa. .

Vacuum sentinam 4kw I paro 5.5kW I Set

Aqua sentinam 5.5kW, I Set, 7.5kW, I Set

Box materia immaculatam ferro

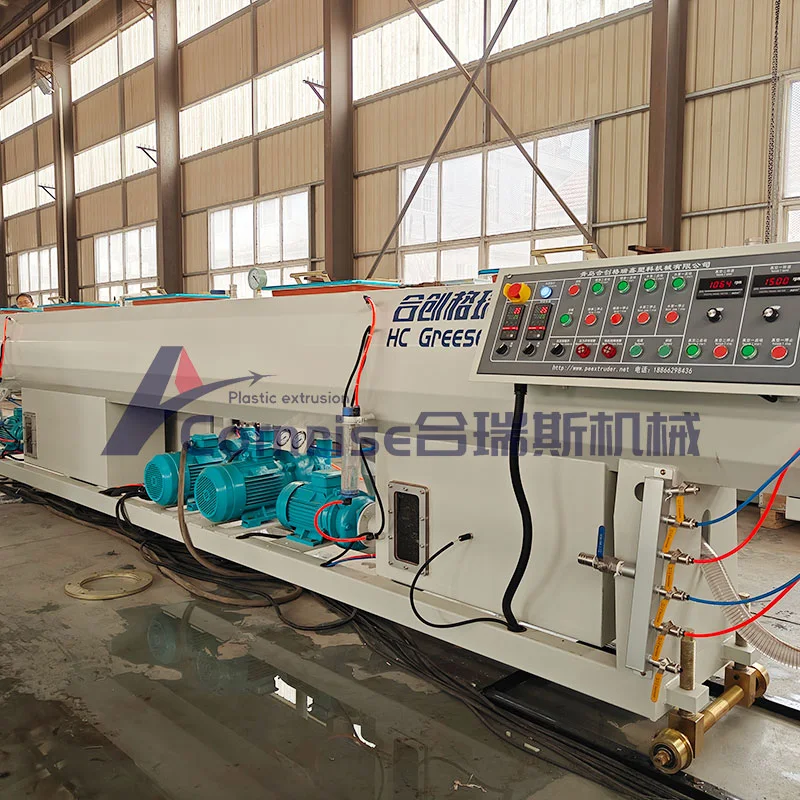

MPP pipe productio linea --- RAMULUS arca specifications (VIII metris) 2sets

Aqua Pumpe 5.5kw

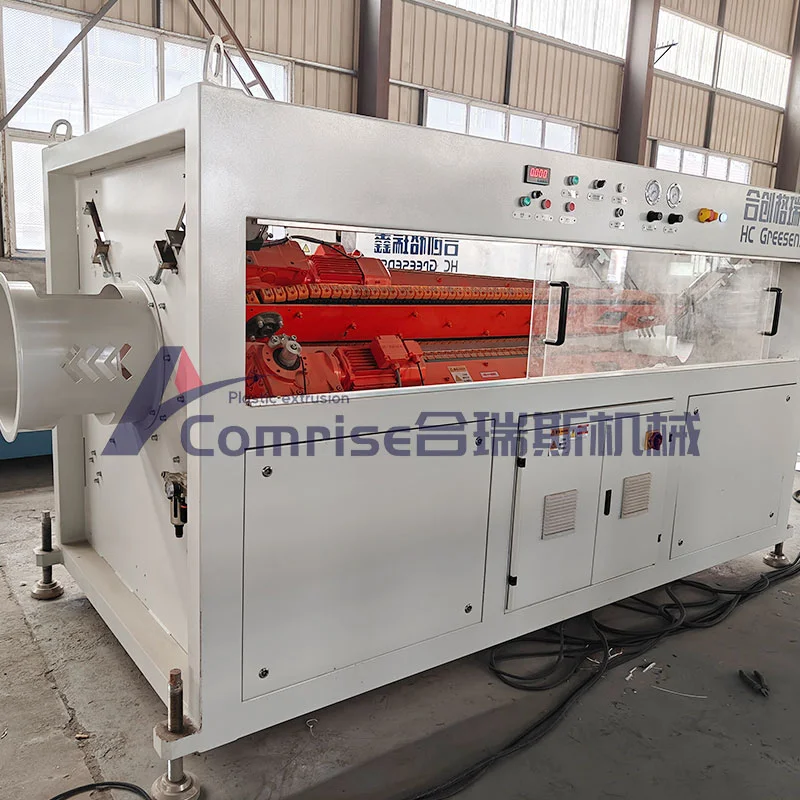

MPP pipe productio linea --- Crawler tractor

Tractio fabrica est disposito ad trahendum fistulae in continua et firmum statum. Et egregius features sunt pacto structuram, sustentationem-liberum structuram et absolutum stabilitatem in operationem.

Truction Methodo Quattuor Crawler Cingulum Clamping

Clamping forma pneumatic clamping

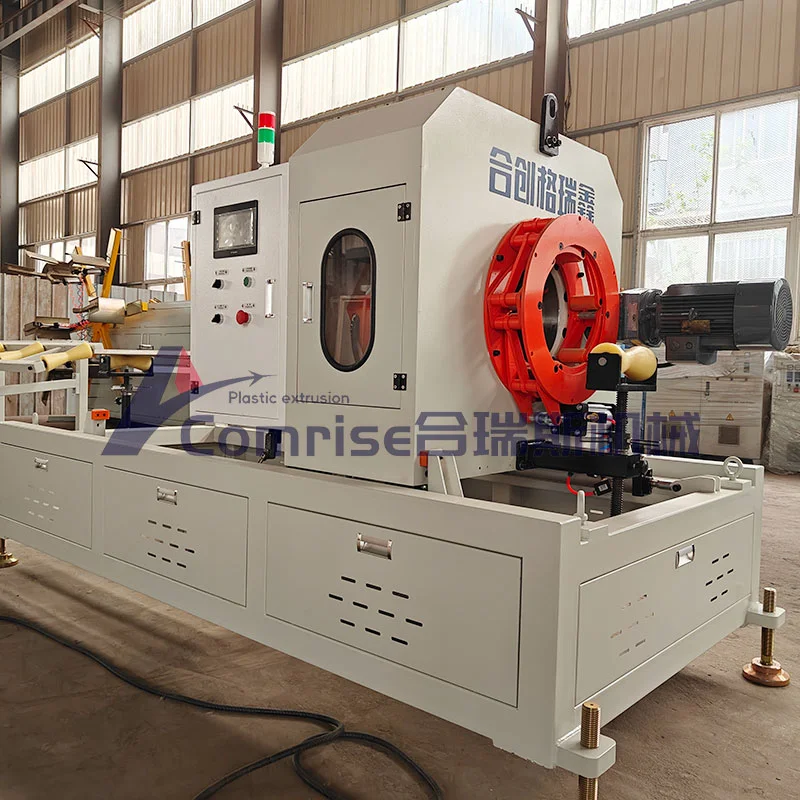

MPP pipe productio linea --- Chipless secans

an Novifacta longitudinem mensuræ fabrica adhibetur, comprehendo an incremental encoder et mensuræ rota, installed in tractor, ita quod longitudo potest esse verius metiri.

ROTARY HYDRAULICIS Chipless secans

pneumatic clamping ratio

pneumatic worktable obsessio

cutting exterior diameter usque ad 250mm

cutting accuracy ≤5mm

large laminam revolution motricium 1.5 kw

hydraulicas feed motricium 0,75 kw

MPP pipe productio linea --- pipe stacking eculeo

Modum pneumatic conversus et blanking

Stacking longitudinem VII metris

MPP pipe productio linea --- gravimetric pondus meter imperium

MPP pipe productio linea magis detial photos enim auxilia partes motricium, inverter, contacttor, vacuum soliferis, aquae sole, tractor V genus obstructionum, quae faciunt pipe per figura, et dragpet.

Ut a Quotation autem

De Officina & Opera

Machina autem nova generatio patris, filio plastic extrusionem machina fabricantium. Pater erat primus coetus Technicae intrare plastic extrusionem industria. Comminution plus quam XXX annos experientia in industria, scelus ad providing qualis, consuetudine, facta products ad competitive prices, habemus periti technica quadrigis, post Sale Service Team, ense nostro clients sunt satiatae cum emit diu. Pelagus scope negotium HDpe Gas et aqua tibia machinis magna diameter spiralis curva machinis, plastic sheet et tabula machinis et redivivus solutions.

De nostris Patentibus testimoniales

Delivery imaginibus

Lorem photo

Customer Feedbacks

Petitiones ad quaestiones (RFQ)

Q1: es fabricare vel negotiatione turba?

A1: Nos es fabricare de apparatus

Q1: Quaeritur: Quid commoda vestri apparatus?

A1: qualis C% certa, celebre electrica notam, 24h tempus techincal firmamentum, flexibile solucionis terminus, loci consulunt officium.

Q2: Quid est Company Purgate Term?

A2: XXX% Depositum T / T, LXX% statera ante sit amet, littera de credit, occidente, Instegram, tertiam partem.

Q3: Quousque eam accipere ad partum post mercedem?

A3 Normaly 35-50 diebus exercere tempus dependent quaedam machinarum.

Q4: warantum verbis tui apparatus?

A4: XII menses, incipiens a apparatus receipt in Lorem scriptor CELLA libero-of-praefectum parce partes per warantum tempus.

Q5: Quid post Sale Service offer?

A5: Pre-Sale Communication → Design rogationem, signature confirmationis → customized productio → test machina ante Shipment → Package → → Technica Support
